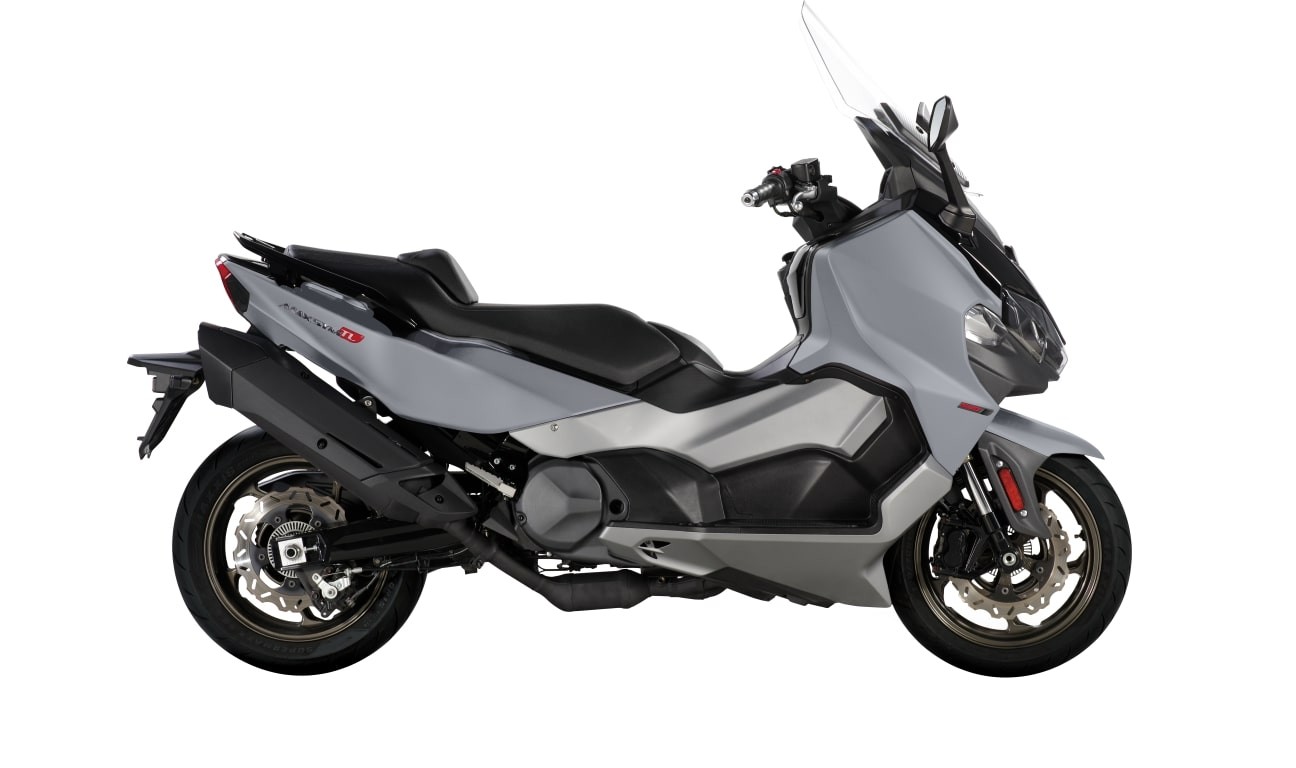

SYM MAXSYM TL 508 - GREY
Specification
Engine
- TYPEInline Twin Cylinder, 4-Stroke, 8-Valve, Liquid-cooled
- BORE X STROKE68 x 70
- DISPLACEMENT508
- MAX POWER33.5kW @ 6,750 rpm
- MAX TORQUE49.9Nm @ 5,250 rpm
- COMPRESSION RATIO10.9:1
- FUEL SYSTEMEFI
- TRANSMISSIONCVT
- CLUTCH TYPEWet, Multiple-Disc Automatic Clutch
- STARTERElectric
- IGNITIONFull Transistor Ignition
Specifications change without prior notice
Chassis
- FRONT SUSPENSIONTelescopic Fork
- REAR SUSPENSIONSwingarm
- FRONT BRAKE275mm Double Disc
- REAR BRAKE275mm Disc Brake
- FRONT TYRETubeless, 120/70-R15
- REAR TYRETubeless, 160/70-R15
- DRY WEIGHT (kg)227
- SEAT HEIGHT (mm)795
- OVERALL LENGTH (mm)2,215
- OVERALL WIDTH (mm)801
- WHEELBASE (mm)1,543
- GROUND CLEARANCE (mm)145
- FUEL CAPACITY (Liter)12.5
Specifications change without prior notice
